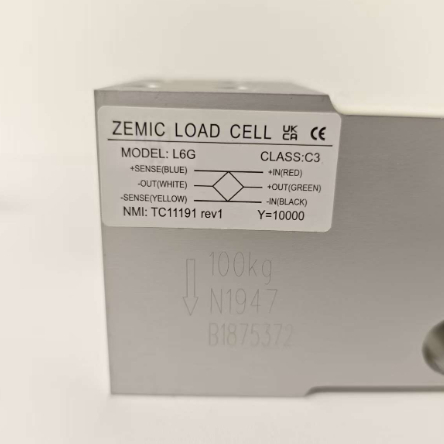

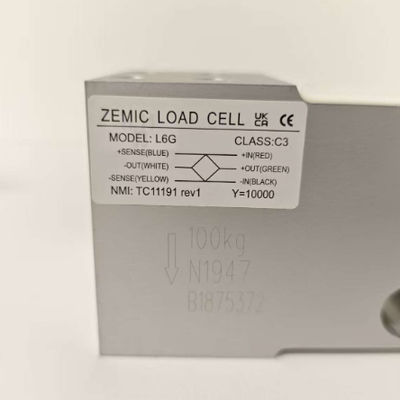

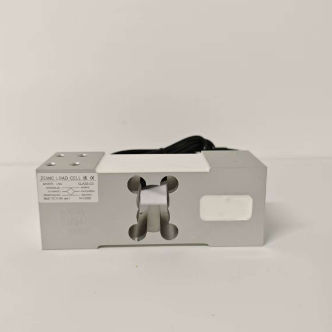

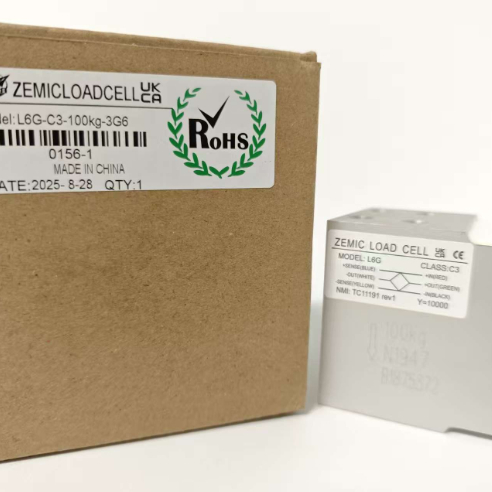

Zemic Load Cell 100kg Weight Sensor L6G Class C3

1Stk
MOQ
Verhandlungsfähig
Preis
Zemic Load Cell 100kg  Weight Sensor L6G Class C3
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Material: Aluminium
Theorie: Widerstandssensor
Ausgabe: Analog SENSOR
Verwendung: Waageskala
Bewertungslast: 100 kg
Montageart: Schraube
Hervorheben:

Zemic 100kg load cell

,

L6G weight sensor

,

Class C3 weighing load cell

Grundinformation
Herkunftsort: China
Markenname: ZEMIC
Zertifizierung: CE OIML
Modellnummer: L6G
Zahlung und Versand AGB
Verpackung Informationen: Karton
Lieferzeit: 2-20DAYS
Versorgungsmaterial-Fähigkeit: 100pcs/m
Produkt-Beschreibung

zemic load cell 100kg Weight Sensor L6G class C3


Specifications:


Rated Load: 50kg~1000kg Insulation Resistance: ≥5000MΩ
Sensitivity: (2.0±0.1%) mV/V Operating Temp.Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation Vol.: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP65
Input Resistance: 385±5Ω Element Material: Aluminum
Output Resistance: 353±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation:

GB/T7551-2008

/ OIML R60


Zemic Load Cell 100kg  Weight Sensor L6G Class C3 0

Description:


1. Zemic L6G load cells are available in the capacities 50~1000kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments. Silicon adhesive sealed, surface anodized and anti-corrosion.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.

Zemic Load Cell 100kg  Weight Sensor L6G Class C3 1Zemic Load Cell 100kg  Weight Sensor L6G Class C3 2Zemic Load Cell 100kg  Weight Sensor L6G Class C3 3



Applications:


Suitable for pricing scales, platform scales and other electronic weighing devices.


Competitive Advantage:


1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the market.

5. Fast & Cheap Delivery: We have big discount from forwarder.
